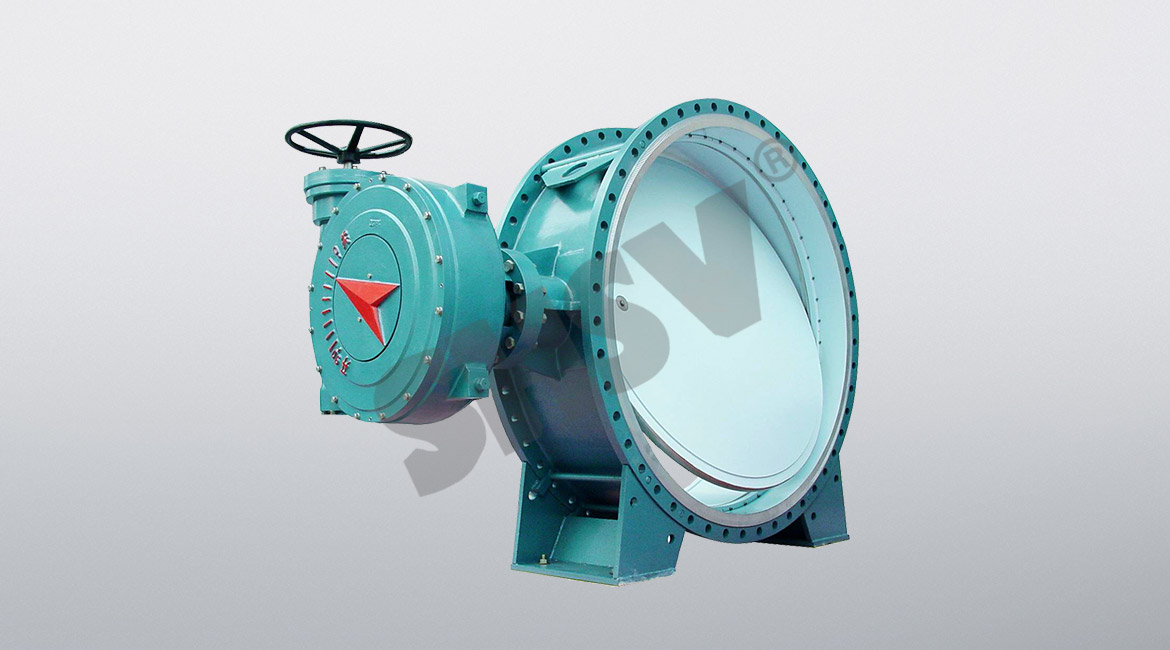

Horizontal two-way metal seal butterfly valve
Model: D342H
Nominal diameter: DN50 ~ 1200mm
Nominal pressure: PN1.0 ~ 2.5MPa
Design and manufacture of standards: GB / T 12238-2008, JB / T8527-1997
Structural length standards: GB / T 12221-2005
Flange standards : GB / T 9113
Pressure Temperature Level: GB / T 12224-2005
Test Test Standards: GB / T 13927-2008

The main connection and dimensions

DN

Structure length L

Dimensions (reference value)

Connection (standard value)

Reference
weight

H

Dt343H

PN0.6MPa

PN1.0MPa

mm

inch

short

long

H1

A1

B1

D

D1

z-d

D

D1

z-d

50

2

108

150

112

350

180

200

140

110

4-14

165

125

4-18

17

65

5/2

112

170

115

370

180

200

160

130

4-14

185

145

4-18

20

80

3

114

180

120

380

180

200

190

150

4-18

200

160

8-18

23

100

4

127

190

138

420

180

200

210

170

4-18

220

180

8-18

25

125

5

140

200

164

460

180

200

240

200

8-18

250

210

8-18

40

150

6

140

210

175

555

270

280

165

225

8-18

285

240

8-22

47

200

8

152

230

208

605

270

280

320

280

8-18

340

295

8-22

60

250

10

165

250

243

680

270

280

375

335

12-18

395

350

12-22

95

300

12

178

270

283

800

380

420

440

395

12-22

445

400

12-22

124

350

14

190

290

310

835

380

420

490

445

12-22

505

460

16-22

181

400

16

216

310

340

915

450

470

540

495

16-22

565

515

16-26

260

450

18

222

330

380

960

480

490

595

550

16-22

615

565

20-26

338

500

20

229

350

410

1020

480

490

645

600

20-22

670

620

20-26

360

600

24

267

390

470

1225

480

660

755

705

20-26

780

725

20-30

540

700

28

292

430

550

1355

640

660

860

810

24-26

895

840

24-30

580

800

32

318

470

640

1470

640

660

975

920

24-30

1015

950

24-33

845

900

36

330

510

710

1545

750

860

1075

1020

24-30

1115

1050

28-33

1050

1000

40

410

550

770

1795

850

860

1175

1120

28-30

1230

1160

28-36

1500

1200

48

470

630

890

1965

850

900

1405

1340

32-33

1455

1380

32-39

2000
